Specification
Model: YF-I215GZ3, Panel Size: 27 inch, Panel manufacturer: CSOT/BOE/AUO/other, Panel type: VA, Number of Pixels: 1920*1080, Active Area: 476.64(H) ×268.11 (V) mm, Surface Treatment: Anti-Glare and Hard-coating 3H Display Mode: Normally Black, Luminance（white）: 250cd/㎡, Contrast ratio: 3000:1, Response time: 30ms TOUCH: 10 points capacitive touch, Scaner: 1D&2D, Screen scale: 16:9, Viewing Direction: 89/89/89/89, Refresh frequency: 60HZ, Display Color: 16.7M, System: Android 11, CPU: RK3568 Quad-core Cortex-A55, Memory: 4GB, Storage: eMMC 32GB, Ethernet: 1 * Realtek GbE LAN Chip (RJ45, 10/100/1000 Mbps), Power Supply: DC12V Power Input / AC 220V Input, Wireless Module: Support Wi-Fi 2.4/5GHz Frequencies and Bluetooth 4.2 (support BLE)
Interface Type
Interface type: USB2.0 USB typeA*5, DC12V-OUT: DC5.5*2.5mm*2, DC12V-OUT: UB11123-GHT2-4F *3, DC24V-OUT: UBA1123-GT181-4H *1, USB 3.0: USB typeA, Micro USB2.0: Micro USB, TF: TF CARD, LINE OUT: Audio out, AC: AC 220V Input, RJ45: RJ45, WIFI: Support Wi-Fi 2.4/5GHz（TBD), Bluetooth: Bluetooth 4.2（TBD）, KEY: Key mode NC, Appearance weight: Appearance Material: Metal, Appearance color: White, Apparent dimension: L776*W368*H155mm（TBD）, Net weight: 6.0kg（TBD）, Hardware function: Speaker: 5W*2(8Ω), Power dissipation: "On: ≤150W, Standby≤0.5W, Off≤0.5W", VESA: 291*125mm, Working environment: Temperature and humidity: 0ºC~50ºC 10～85%RH non- condensing, Remarks: "Customer's other special requirements can be based on the actual, Order demand to increase or decrease"

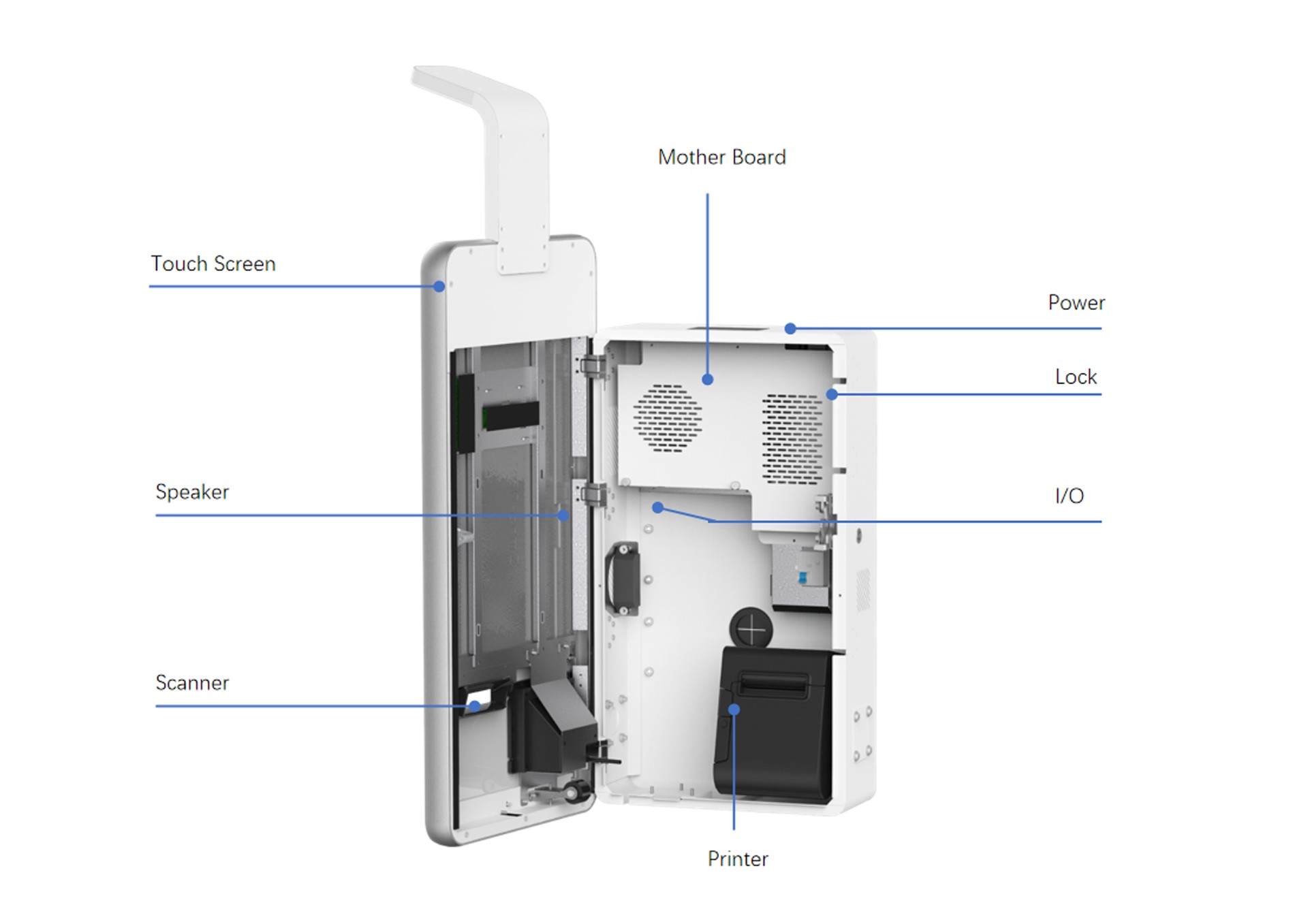

Front Door Design for SCO and Easy for maintenance
Give your customers the control they want and deliver faster, better service with our innovative self-checkout solutions. Big or small, BREWTEK has the flexibility and the support to deliver on your business objectives and retail environment.
